5.0 Inch 800*480 IPS ALL Resolution 40 Pin ILI5960 Lcd Screen LCD Touch Screen

Name: 50 Inch 800480 IPS ALL Resolution 40 Pin ILI5960 Lcd Screen LCD Touch Screen
Brand: ESEN
Price: 1 USD

Wholesale 5.0 Inch 800*480 IPS ALL Resolution 40 Pin ILI5960 Lcd Screen LCD Touch Screen from china suppliers

Brand Name : ESEN

Model Number : T050IWV40E1K542-CT

Certification : ISO9001/ISO14001

Place of Origin : Shenzhen China

MOQ : No MOQ

Price : can be negotiated

Payment Terms : L/C,T/T

Supply Ability : 300K/mth

Delivery Time : 6~15 working days

Packaging Details : Cartons, Capboard, EPE, Blister Tray.

Size : 5.0inch

Resolution : 800(horizontal)*480(Vertical)

Interface : RGB-24bit

connector : Connector

Color Depth : 16.7M

Technology type : a-Si

Pixel pitch (mm) : 0.045 x 0.135

Pixel Configuration : R.G.B. Vertical Stripe

Display Mode : Normally Black

LCD IC : ILI5960+ILI6122

Pin : 40Pin

Viewing Direction : ALL (80/80/80/80)

Gray Scale Inversion Direction : 6 O’clock

LCM (W x H x D) (mm) : 120.7*75.9*3

Active Area(mm) : 108 x 64.80

With /Without TSP : Without

LED Numbers : 18LEDs

Luminance : 500/cd

Operating Temperature : -20℃~ 70℃

Storage Temperature : -30℃~ 80℃

Custom Service : FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board

Contact Now

5.0 Inch 800*480 IPS ALL Resolution 40 Pin ILI5960 Lcd Screen LCD Touch Screen

40 Pin Lcd Screen 5 Inch 800*480 Resolution Small LCD Touch Screen

rawings

Notes:
(1) Display Type : 5.0"TFT
(2) Viewing Direction : All Viewing Direction

(3) Lcd Drive IC : ILI5960+ILI6122
(4) Operating Temp : -20~70 ℃
(5) Storage Temp : -30~80 ℃
(6) Unmarker Tolerance: ±0.20
(7) Protection : ROHS

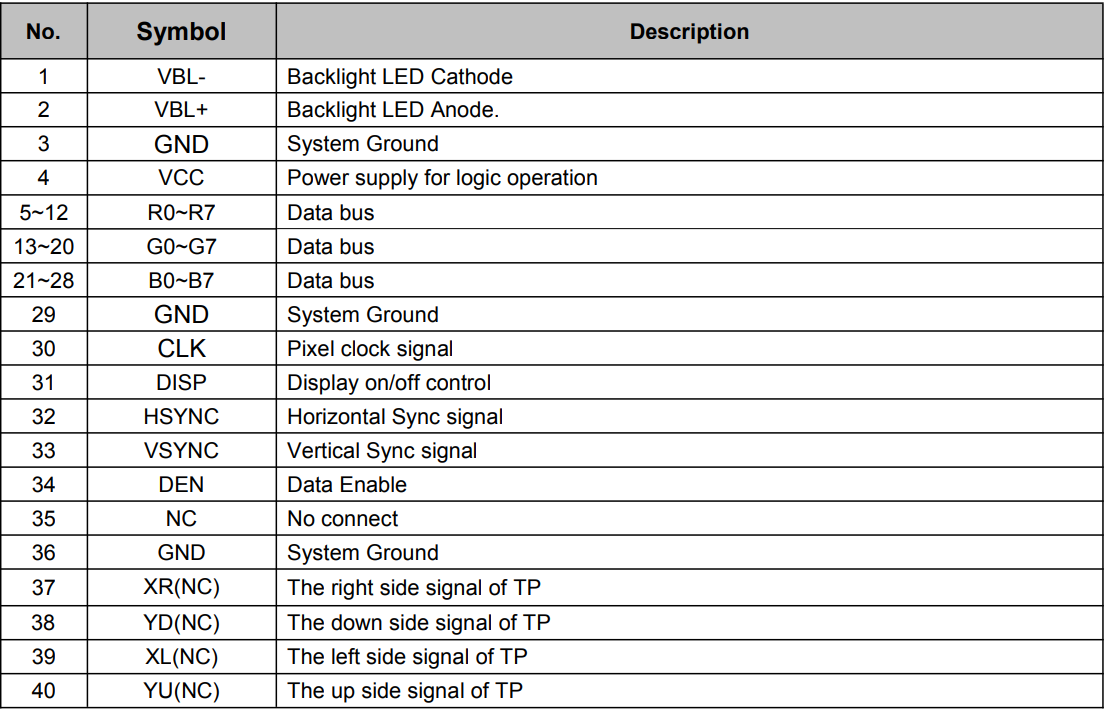

Input/Output Terminals

5.0 Inch 800*480 IPS ALL Resolution 40 Pin ILI5960 Lcd Screen LCD Touch Screen

Products Quality Assurance

(1)High-quality raw material supplier :
after-sales guarantee and long-term stable supplier, LCD panel and Driver IC made of A-regulated raw materials.
(2)Other materials:
such as polarizers, backlight film materials, etc. We also use brand new A-regulated raw materials
(3)Strict quality control:
Through rate up to 98.5%,Customer online defect rate as low as 0.3%.
Inspection is done in FOG==>LCM==>LCM+RTP/CTP==> production online inspection ==>Q.C inspection==>aging test 4 hours with load in 60 ℃ special room (as option)==>OQC.
A product must pass 5 tests before shipment: incoming inspection, 100% online inspection, QC on-site inspection, aging test and OQC inspection, etc.
