0.49 inch 64x32 Monochrome Micro OLED Display White Color Mono PMOLED LCD Screen Micro Display SSD1315 I2C 14Pin FPC Small Size
| 1. Basic Specifications 1 Display Specifications 2 Mechanical Specifications 3 Active Area / Memory Mapping & Pixel Construction 4 Mechanical Drawing 5 Pin Definition | 2. Absolute Maximum Ratings |
| 3. Optics & Electrical Characteristics 1 Optics Characteristics 2 DC Characteristics 3 AC Characteristics 3.1 I2C Interface Characteristics 3.2 I2C Interface with Internal Charge Pump 3.3 I2C Interface with External VCC | 4. Functional Specification 1 Commands 2 Power down and Power up Sequence 2.1 Power up Sequence 2.2 Power down Sequence 3 Reset Circuit 4 Actual Application Example 4.1 VCC Supplied Externally 4.2 VCC Generated by Internal DC/DC Circuit |
| 5. Reliability 1 Contents of Reliability Tests 2 Failure Check Standard | 6. Outgoing Quality Control Specifications 1 Environment Required 2 Sampling Plan 3 Criteria & Acceptable Quality Level 3.1 Cosmetic Check (Display Off) in Non-Active Area 3.2 Cosmetic Check (Display Off) in Active Area 3.3 Pattern Check (Display On) in Active Area |
| 7. Package Specifications | 8. Precautions When Using These OEL Display Modules 1 Handling Precautions 2 Storage Precautions 3 Designing Precautions 4 Precautions when disposing of the OEL display modules 5 Other Precautions |
Active Area / Memory Mapping & Pixel Construction

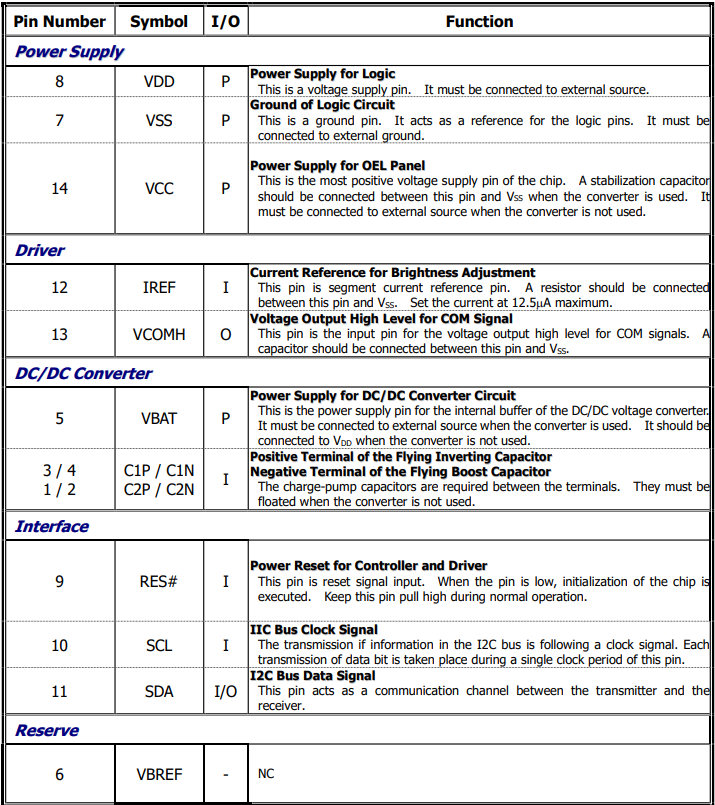

Pin Definition

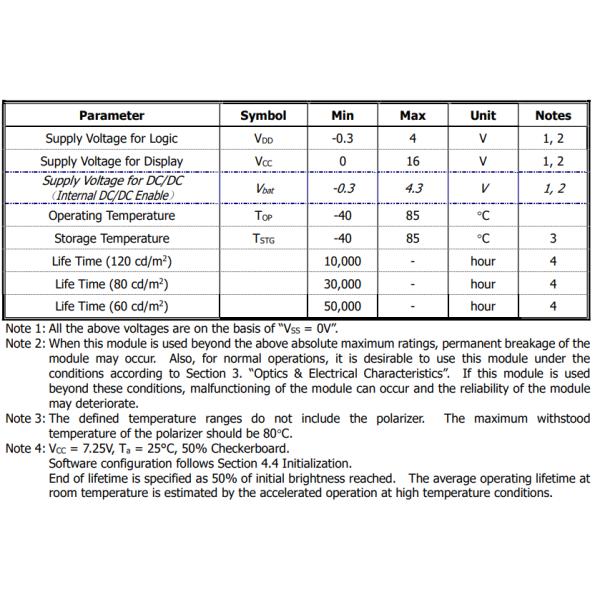

Absolute Maximum Ratings
Special Tips:When design main board, Please add Electronic Switch circuit, otherwise, will be caused leak current
Other Precautions
1) When an OEL display module is operated for a long of time with fixed pattern may remain as an after image or slight contrast deviation may occur. Nonetheless, if the operation is interrupted and left unused for a while, normal state can be restored. Also, there will be no problem in the reliability of the module.
2) To protect OEL display modules from performance drops by static electricity rapture, etc., do not touch the following sections whenever possible while handling the OEL display modules.
* Pins and electrodes
* Pattern layouts such as the FPC
3) With this OEL display module, the OEL driver is being exposed. Generally speaking, semiconductor elements change their characteristics when light is radiated according to the principle of the solar battery. Consequently, if this OEL driver is exposed to light, malfunctioning may occur.
* Design the product and installation method so that the OEL driver may be shielded from light in actual usage.
* Design the product and installation method so that the OEL driver may be shielded from light during the inspection processes.
4) Although this OEL display module stores the operation state data by the commands and the
Warranty period:
Twelve (12) months from the date of delivery. The buyer shall complete all assembly processes within the valid twelve (12) months. During the warranty period, if the product contains defective materials or processes that do not conform to product specifications, applicable drawings and norms, ESEN shall be responsible for replacement. All products must be properly stored, handled and maintained in appearance to ensure effective handling during the warranty period. When the return does not comply with the above terms, the warranty coverage is exclusive.
